AveoVision™ Sensors and AvionicsAveoVision™ Sensors and Avionics

Your new superpower.

Aveo5D™ Multi-Spectral CamerasAveo5D™ Multi-Spectral Cameras

AveoVision™ team has designed in-house cameras using sensors sourced from friendly countries that make them NDAA compliant and free of electronics that can compromise security or insert malware. This line of world-class, high-spec, multi-spectral cameras range across visible (Day), SWIR (Short Wave InfraRed), MWIR (Mid Wave InfraRed), and LWIR (Long Wave InfraRed). Aveo5D™ offers various resolutions and optics to achieve specific mission requirements and can mix and match these cameras to accommodate various form factors, weight, and platforms. Combined into custom pods or integrated with Aveo lighting modules such as Phoenix™ for helicopters, Iguana™ for ground vehicles, and Nemesis™ for UAVs/USWs/UGVs, these packages are the lightest and most powerful in the aerospace and defense industry; and more importantly, AFFORDABLE.

AveoDAY™ Cameras

When the weather is great and visibility high, Aveo gives you the full picture with whatever optics you need. Resolutions vary by the model you select in addition to various magnifications via telephoto and motorized zoom lenses. Some AveoDAY cameras can even be incorporated into aerodynamically designed wingtips with lights. Aveo5D™ also introduces a low-light color camera, so you can see the world in color, not monochrome. This camera is available free-standing of course like all other Aveo5D™ products, but also integrated into Aveo's different lighting products including Phoenix™, Genesis™, Nemesis™, Sapphire family, Iguana Pods and Aveo Pantheon™ family.

Aveo5D™ SWIR

Aveo has enabled the use of SWIR cameras both in bad weather during the day and at night. Through the combined use of Aveo's proprietary IR Illuminators, even in low reflective light situations, Aveo can aid in providing reflected IR light to enable SWIR imagery. No longer do helicopter pilots have to compromise their missions in IFR conditions. Sensor resolutions from 640x512 to 1280x1024 and various lenses based on requirements. Current offerings provide various magnifications (9mm-900mm) from normal to long range.

AveoMWIR™ Cameras

Aveo offers an MWIR camera system for special requirements where the customer needs to observe at long distance and has the power available to operate and maneuver the camera. The system is cryogenically cooled and requires stabilization.

Aveo5D™ LWIR

For low cost imagery in low light environments, Aveo provides LWIR or Thermal Cameras. Aveo’s thermal cameras provide early detection of living and non-living bodies against a background; be it obscured by weather or foliage, etc. These thermal cameras can be combined with either analog or digital Night Vision, SWIR, LWIR, or Day camera modules; with the resulting video streamed to any of Aveo's other digital display solutions onboard the platform or remoted via Aveo’s video network system. Sensor resolutions range from 640x512 to the World's first 1920xl080 sensor, along with several lenses that meet mission requirements. As with all Aveo camera solutions, the AveoLWIR systems meet Mil-Spec environmental requirements.

Aveo5D™ Night VisionAveo5D™ Night Vision

Aveo5D designs every component for both digital and analog night vision systems (with the exception of the Image Intensifier Tube).

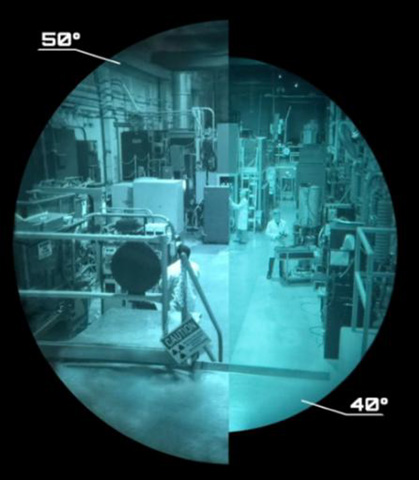

Aveo5D designs and manufactures world-class night vision optics in both 50-degree and 40-degree FOV (Field of View). These optics meet full mil spec requirements and, unlike many other competitor optics, are accurate in their stated performance.
The Aveo5D binocular housing is constructed from Aveo’s proprietary, graphene coated 3D SLS powder, giving it light weight and thermally dissipating characteristics. The housing has two IR illuminators of 850nm and 1064nm wavelenghs and articulates for both IPD (Inter Pupillary Distance) and FOV. With Aveo5D 50deg optics, the user can achieve up to 85deg FOV.
Aveo5D Hybrid Binoculars is a first of its kind design using Aveo’s 5D binocular housing with one side holding a standard night vision IIT and the other side containing a 640 resolution thermal camera. The user’s brain integrates the thermal and night vision images into a single fused image, providing the best of both worlds in low light detection in a light weight, low cost form factor
Aveo has designed an Aveo5D Trinocular System containing a Day Camera, a Thermal Camera, and a Digital Night Vision Camera; all at a magnified 7X power. These images are fused to a single image that is sent to two OLED displays to give the user a binocular perspective. With built-in Wifi, the user can stream whatever he is looking at around the world.
The Aveo5D Panoramic Quad Night Vision System utilizes Aveo’s proprietary graphene-based SLS powder to make an extraordinary, light weight, stronger than steel housing. The system has an IR illuminator, both onboard and off board power (via separate battery pack), can adjust the diopter, and collimate the image from the front of the housing. With Aveo’s 50deg optics, the user can achieve a FOV wider than the naked human eyes can see.

Aveo5D™ Micro RadarsAveo5D™ Micro Radars

Aveo5D™ provides a product line of micro radars to perform several functions for various air, surface and ground platforms. The radars operate at different millimeter wave frequencies based on their functions. Aveo has a micro radar that operates as a low altitude altimeter and obstruction detection system, and another that can detect small drones, power lines, and obstructions/objects near the platform.

Aveo ForceField™ JammersAveo ForceField™ Jammers

The Aveo ForceField™ family of jammers are in many form-factors and capabilities. From drones all the way up to large helicopters and aircraft these jammers can be a significant line of defense or safety feature for eliminating the threat of drone collisions to your airframe. Directional or 360 defense options are available. Aveo ForceField jammers can detect the unique identifier code of a commercial drone, the frequencies of both the data link and video link, and either jam the drone completely, or take effective control of the drone.
